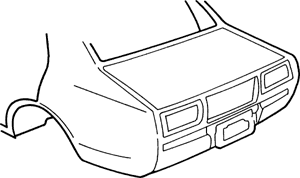

Assembly is serviced with both quarters, lower rear body panel, inner structure and trunk lid / lift gate as a unit. Time is to cut through the quarter & back glass openings and across the floor pan in the door opening. Includes the use of inserts (but not the fabrication). On conventional framed vehicles, time includes R&I rear bumper and unbolting from the frame. On unitized vehicles, R&I of the rear bumper is not included.
SPECIAL NOTATION:
Glass, moldings, mounting studs or mounting flange may be damaged or broken during normal service procedures on some applications. MOTOR advises that these factors be considered before performing glass operations in the event unavoidable damage occurs. Time for the removal of old adhesive, clean and preparation of sealing surfaces (vehicle and/or glass) should be estimated after an on-the-spot evaluation.
INCLUDED:
• Adhesive application if required (all types)
• Back Glass & reveal moldings
• Carpet & insulation turn back
• Cutting & welding as necessary
• Grind, fill & smooth welded seams (up to
150 grit sandpaper)
• Interior moldings
• Lamp
• Lift gate R&I
• Parcel shelf
• Quarter & interior trim
• Rear trunk compartment trim
• Rear package tray trim
• Rear bumper R&I (on conventional
framed vehicles)
• Remove & replace caulking
• Seal strips & weatherstrips
• Seats (front & rear)
• Sill plates
• Trunk lid, lift gate lock cylinder R&I
DOES NOT INCLUDE:
• Antenna
• Brakes, adjust or bleed
• Carpet & insulation R&I
• Emblems, moldings & nameplates
• Exhaust system
• Fuel tank
• Headliner
• Lamp (optnl equip)
• Lines (fuel, brake & emission)
• Mud guards
• Passenger restraint systems
• Rear bumper (on unitized vehicles)
• Rear suspension or drive train
• Roof fabric cover
• Spoilers & flares
• Stripe tape, decals or overlays
• Trunk lid
• Wheel alignment
Footnotes found in a chapter contain vehicle-specific information. The content of footnotes is in addition to, and takes precedence over, information in the Guide to Estimating pages for the operation indicated.
REV. 8/06
