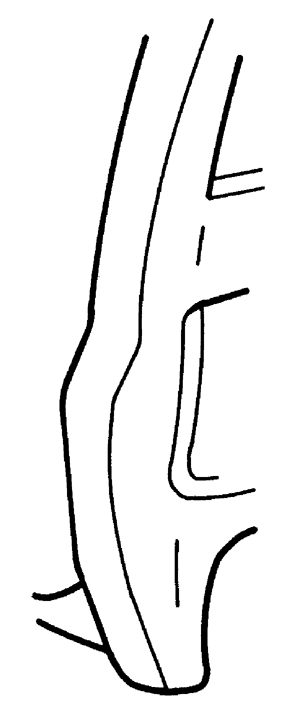

Assembly is serviced with inner & outer rear cab corner / side panels, lock pillar and rocker panel. Time is with rear pickup bed and/or equipment removed or pulled back and to section rocker in the door opening. On 4 door crew cab models, time is to section rocker in the rear door opening. Includes the necessary use of inserts (but not fabrication).
SPECIAL NOTATION:
Glass, moldings, mounting studs or mounting flange may be damaged or broken during normal service procedures on some applications. MOTOR advises that these factors be considered before performing glass operations in the event unavoidable damage occurs. Time for the removal of old adhesive, clean and preparation of sealing surfaces (vehicle and/or glass) should be estimated after an on-the-spot evaluation.
INCLUDED:
• Adhesive application if required (all types)
• Carpet & insulation turn back
• Cutting & welding as necessary
• Grind, fill & smooth welded seams (up to 150 grit sandpaper)
• Standard glass R&I
DOES NOT INCLUDE:
• Electrical wiring
• Emblems & nameplates
• Exhaust system
• Floor mats & seats
• Fuel tank
• Headliner
• Insulation & trim
• Moldings
• Pickup box set back or R&I
• Seats R&I
• Shoulder harness R&I
• Stripe tape, decals or overlays
Footnotes found in a chapter contain vehicle-specific information. The content of footnotes is in addition to, and takes precedence over, information in the Guide to Estimating pages for the operation indicated.
REV. 8/06
