SPECIAL NOTATION:

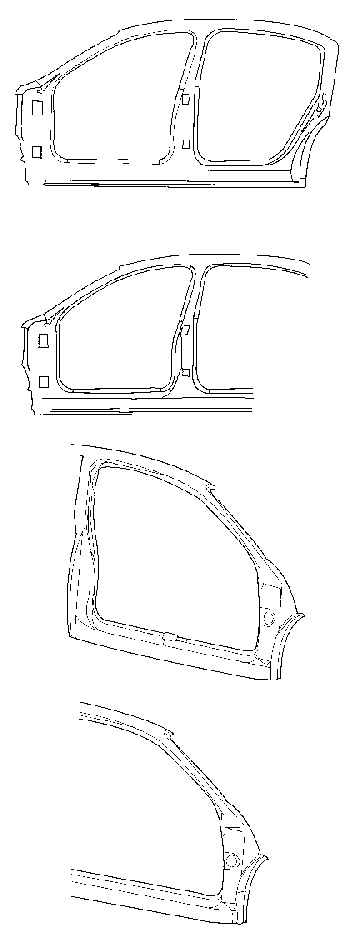

When replacing welded door hinges, add one half of the Door Hinge R&R time to Uniside R&R time. Included and Does Not Include items also apply to sectioning below roof (lower uniside) and sectioning roof rail (upper uniside). When sectioning other areas of uniside, follow GTE page for portion of uniside being sectioned.
INCLUDED:
• Adhesive application if required (all types)
• Carpet & insulation turn back
• Caulk / seam sealer
• Center pillar trim (4 door models)
• Cutting and welding as necessary
• Door striker
• Front seat R&I
• Grind, fill & smooth welded
seams (up to 150 grit sandpaper)
• Hinge pillar trim
• Jamb switches
• Package tray trim
• Quarter panel trim
• Rear seat R&I
• Roof drip rail moldings
• Seat belt anchor
• Sill plates
• Weatherstrips
DOES NOT INCLUDE:
• ABS sensor
• Airbag components
• Back glass and moldings
• Carpet & insulation R&I
• Control cables
• Doors
• Door hinge
• Foam
• Electrical wiring
• Emblems & nameplates
• Fender
• Fluid lines
• Headliner
• Instrument panel
• Quarter glass and moldings
• Road wheel
• Roof cover
• Stripe tape, decals or overlay
• Windshield glass and moldings
• Wiring
Footnotes found in a chapter contain vehicle-specific information. The content of footnotes is in addition to, and takes precedence over, information in the Guide to Estimating pages for the operation indicated.
